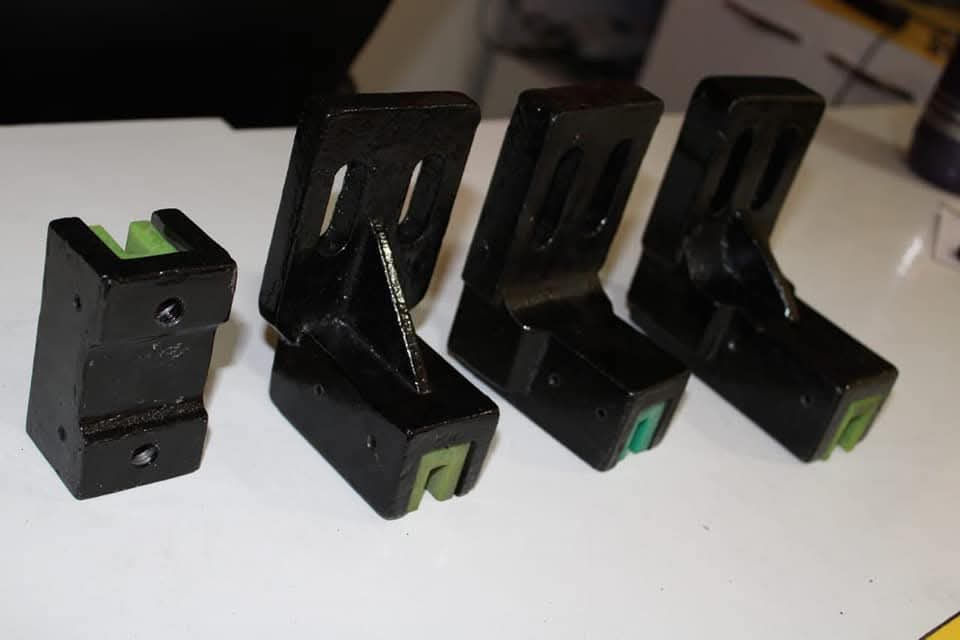

Countershoe for elevator
450.0 INR/Piece
Product Details:
- Noise Level Low (designed to reduce friction noise)
- Usage Used in elevator/lift systems for smooth counterweight/car guidance
- Type Elevator Countershoe (Guide Shoe for Counterweight/Car)
- Material High-strength Cast Iron Body, Inserted with Polyurethane or Nylon Liner
- Mechanism Type Sliding/Guide Mechanism
- Working Temperature -10C to +80C (estimated, typical for elevator components)
- Safety Device Functions as a safety running guide and shock absorber for elevator counterweight
- Click to View more
X
Countershoe for elevator Price And Quantity
- 450.0 INR/Piece
- 20 Piece
Countershoe for elevator Product Specifications
- Functions as a safety running guide and shock absorber for elevator counterweight
- Used in elevator/lift systems for smooth counterweight/car guidance
- Elevator Countershoe (Guide Shoe for Counterweight/Car)
- -10C to +80C (estimated, typical for elevator components)
- High-strength Cast Iron Body, Inserted with Polyurethane or Nylon Liner
- Low (designed to reduce friction noise)
- Sliding/Guide Mechanism
- Easy-Replace Insert Design
- Suitable for Standard Elevator Rail Sizes (T-shaped rails, 16mm/10mm/9mm etc.)
- Passenger Elevators, Freight Lifts, Dumbwaiters
- Available for custom rail sizes and mounting requirements
- Corrosion Resistant Black Coating
- High load-bearing and wear-resistant
- Bolt-On, Adjustable Slotted Plate
- Dimensional inspection and hardness tested before dispatch
- Black body with green or yellow/blue liner (may vary)
- Individually packed or as per customer requirement
Product Description
Elevator Counter Shoe Description
A Counter Shoe is an elevator component installed on the counterweight frame to guide and maintain the proper alignment of the counterweight assembly along the counterweight guide rails. It ensures smooth and stable movement of the counterweight during elevator operation.
The counter shoe works similarly to the elevator car guide shoe by reducing lateral movement, vibration, and noise while the counterweight travels up and down inside the elevator shaft.
Main Functions:
-
Guides the counterweight Keeps the counterweight aligned with the guide rails.
-
Reduces vibration and noise Provides smooth and quiet counterweight movement.
-
Maintains stability Prevents excessive side movement during elevator travel.
-
Improves safety and performance Ensures proper operation of the traction system.
-
Reduces wear Protects guide rails and counterweight components from damage.
Main Components:
-
Counter shoe bracket Supports and fixes the shoe assembly to the counterweight frame.
-
Sliding pad or roller Maintains contact with the guide rail.
-
Spring adjustment mechanism Maintains correct pressure against the rail.
-
Damping system (if provided) Absorbs shocks and vibrations.
-
Mounting hardware Secures the assembly to the counterweight frame.
Types of Counter Shoes:
-
Sliding Counter Shoe Uses wear-resistant sliding inserts for guide rail contact.
-
Roller Counter Shoe Uses rollers for smoother operation and reduced friction.
-
Hydraulic Counter Shoe Uses damping technology for high-speed elevators.
Advantages:
-
Ensures smooth counterweight travel.
-
Reduces noise and vibration.
-
Improves elevator ride quality.
-
Extends the life of guide rails and related components.
-
Suitable for passenger and heavy-duty elevator systems.
Purpose:
The main purpose of a counter shoe is to guide the elevator counterweight safely and smoothly along the guide rails, maintaining proper alignment and reliable elevator operation.
Innovative Adjustable Design
The Countershoe's bolt-on, slotted mounting plate allows for precise adjustment and seamless compatibility with standard T-shaped elevator rails. This flexibility ensures a secure fit, whether upgrading existing systems or installing in new passenger elevators, dumbwaiters, or freight lifts.
Reliable and Durable Performance
Constructed from high-strength cast iron and fitted with a replaceable polyurethane or nylon liner, this countershoe is designed for long-lasting operation. It resists wear, supports high loads, and maintains smooth movement in temperatures ranging from -10C to +80C.
Maximum Safety and Minimal Maintenance
Acting as both a safety running guide and shock absorber for elevator counterweights, the Countershoe maintains safe operation while its easy-replace liner design simplifies servicing. Customization is available for special rail or mounting needs.
FAQ's of Countershoe for elevator:
Q: How is the Countershoe mounted onto elevator rails?
A: The Countershoe utilizes an adjustable bolt-on slotted plate, making it easy to mount on standard T-type elevator rails. This design allows for secure installation and precise alignment during setup.Q: What materials are used in the construction of this Countershoe?
A: It features a high-strength cast iron body with an inserted liner made from either polyurethane or nylon, offering exceptional durability and low noise operation.Q: When should the liner insert be replaced?
A: The liner insert should be replaced when signs of wear are observed or during scheduled maintenance checks. The easy-replace design allows operators to change the liner without removing the entire assembly.Q: Where is this Countershoe typically used?
A: It is suitable for installation in a range of elevator systems, including passenger elevators, freight lifts, and dumbwaiters that operate with standard T-shaped rail profiles.Q: What is the inspection process before dispatch?
A: Each Countershoe undergoes dimensional inspection and hardness testing to ensure quality and reliable performance before it's shipped to customers.Q: How does the Countershoe improve elevator operation?
A: By providing precise guidance and reducing friction and noise, the Countershoe enhances ride smoothness and extends the lifespan of elevator components.Q: What are the benefits of the corrosion-resistant black coating?
A: The black coating protects the Countershoe from corrosion, even in humid or challenging environments, resulting in longer service life and reduced maintenance costs.Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email

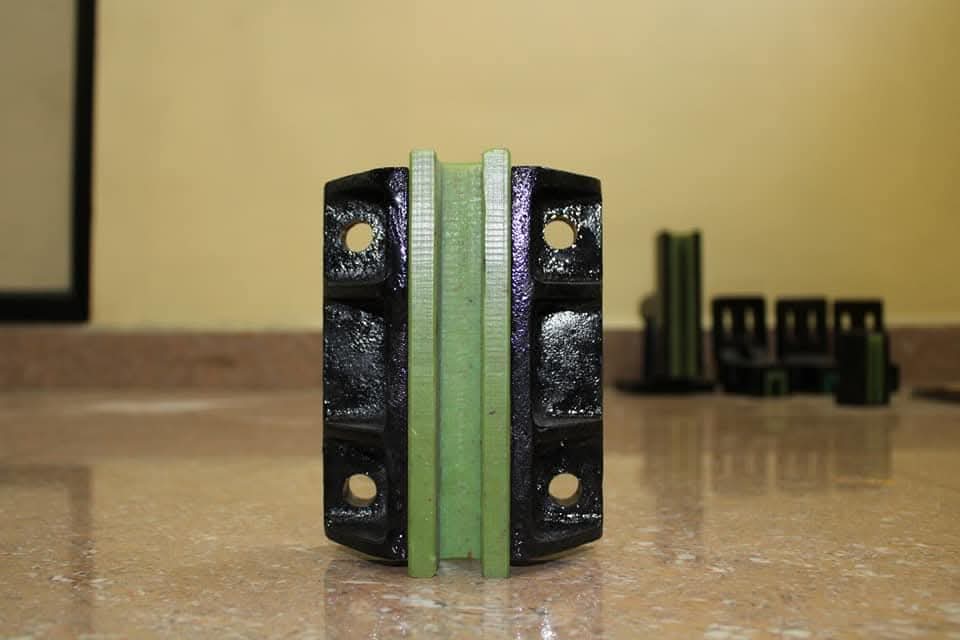

Other Products in 'Elevator Assembly Spare Parts' category
