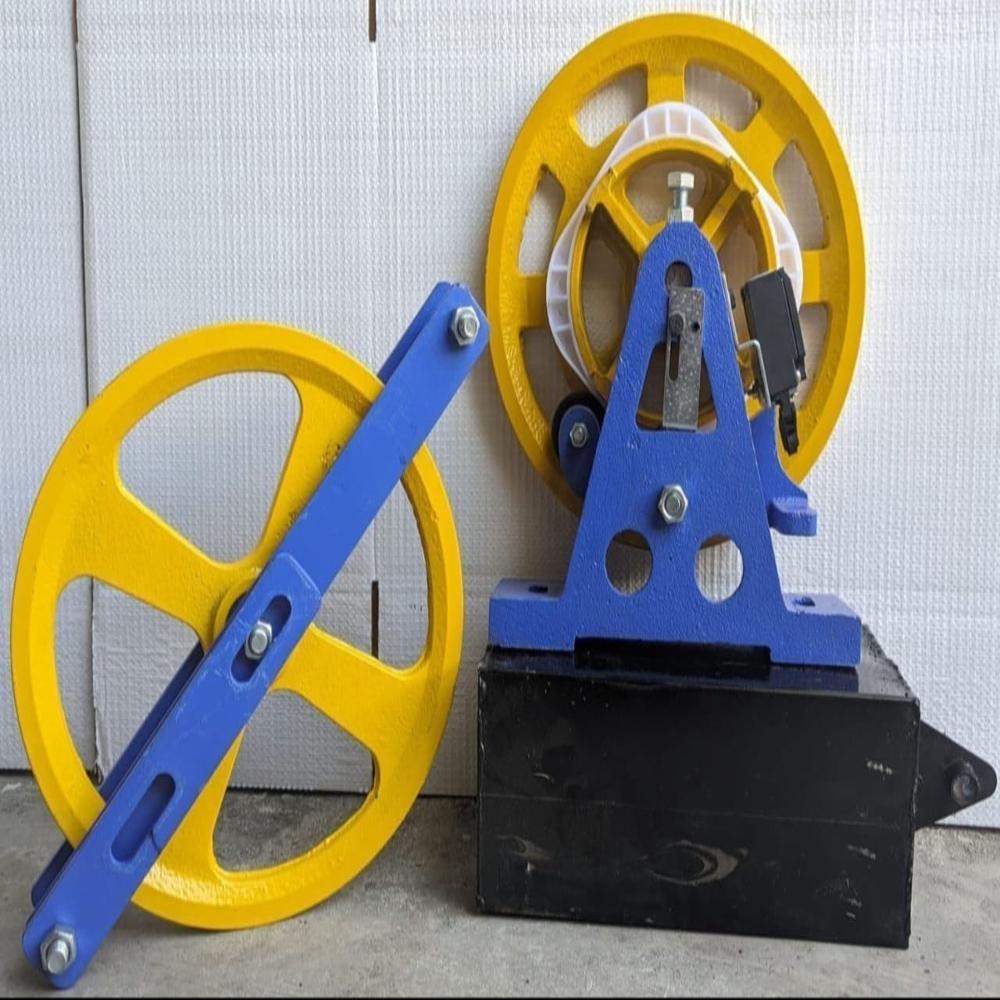

Overspeed Protection

Name: Overspeed Protection
Brand: M. B. ENGINEERING
Price: 6500.0 INR
Availability: InStock

6500.0 INR/Piece

Get a Price/Quote

Product Details:

Usage Elevator Safety Device
Type Elevator Overspeed Governor
Inclination 0 (Vertical usage for elevators)
Noise Level Low
Load Capacity Up to 2000 kg (Depending on model and usage)
Material Cast Iron (Wheel), Steel (Frame), Industrial Paint Finish
Drive Type Mechanical, Rope-driven
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Overspeed Protection Price And Quantity

Minimum Order Quantity 5 Piece
Price 6500.0 INR/Piece

Overspeed Protection Product Specifications

Drive Type Mechanical, Rope-driven
Speed Up to 2.5 m/s (Typically recommended for elevator overspeed protection devices)
Material Cast Iron (Wheel), Steel (Frame), Industrial Paint Finish
Control Device Mechanical & Electro-mechanical
Safety Device Overspeed Governor with electrical safety contacts
Type Elevator Overspeed Governor
Inclination 0 (Vertical usage for elevators)
Noise Level Low
Working Temperature -20C to 60C
Mechanism Type Centrifugal Mechanical Action
Usage Elevator Safety Device
Load Capacity Up to 2000 kg (Depending on model and usage)

Wheel Diameter Approximately 250 mm to 300 mm
Application Passenger and Freight Elevators, Lifts, Hoists
Function Stops elevator car in case of overspeed by mechanical engagement with the guide rail
Mounting Type Floor or Wall Mounted
Finish Corrosion Resistant Industrial Powder Coated
Activation Speed Range 0.6 m/s to 2.5 m/s adjustable
Release Mechanism Spring-Loaded Arm with Mechanical Lock

Overspeed Protection Trade Information

Delivery Time 5-7 Days

Product Description

An Elevator Overspeed Governor is a critical safety device installed in elevator systems to prevent the elevator car from moving at an unsafe speed, especially during a free fall or uncontrolled downward movement.

The governor continuously monitors the speed of the elevator car through a governor rope connected to the elevator safety gear. Under normal operation, the governor rotates freely. If the elevator exceeds its preset safe speed (usually due to a failure in the traction system, control system, or suspension components), the governor activates and performs the following actions:

Detects overspeed condition The governor mechanism senses that the elevator is moving faster than the allowed limit.
Trips the safety mechanism A centrifugal or electronic sensing system locks the governor.
Stops the governor rope movement The locked governor pulls the safety gear linkage.
Activates safety brakes The elevator car safety gear grips the guide rails and slows or stops the car safely.
Cuts power (in many systems) An electrical switch may disconnect power to the elevator drive system.

Main Components:

Governor pulley/sheave Rotates with elevator movement.
Governor rope Connects the governor to the elevator safety gear.
Flyweights or sensors Detect excessive speed.
Trip mechanism Locks the governor during overspeed.
Safety switch Sends a signal to stop elevator operation.
Safety gear linkage Transfers the action to the car brakes.

Types of Overspeed Governors:

Mechanical centrifugal governor Uses rotating weights to detect overspeed.
Electronic overspeed governor Uses sensors and control electronics for monitoring and activation.
