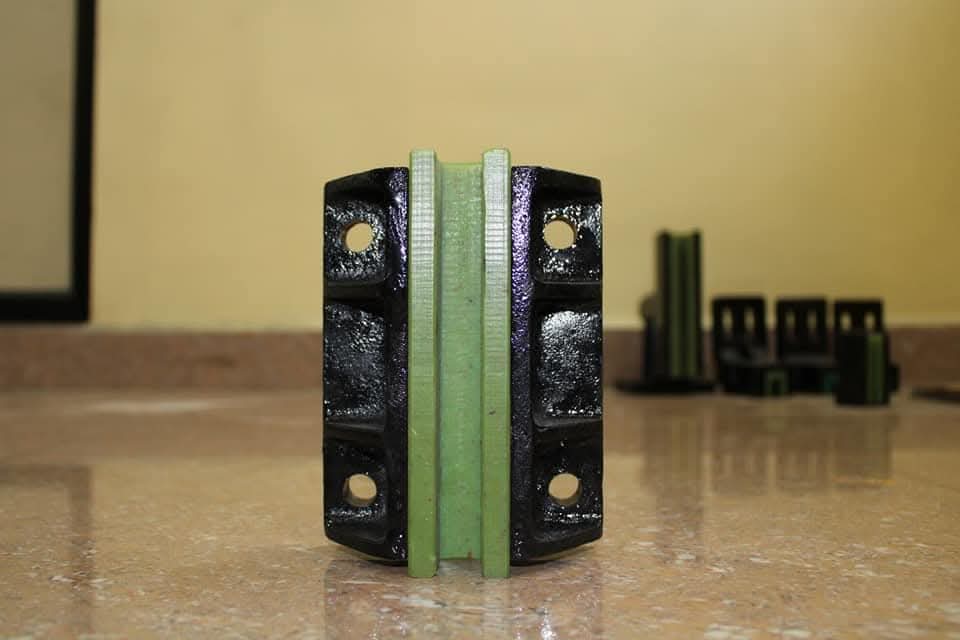

Low friction elevator guide shoe

Name: Low friction elevator guide shoe
Brand: M. B. ENGINEERING
Price: 350.0 INR
Availability: InStock

350.0 INR/Piece

Get a Price/Quote

Product Details:

Usage Elevator guide rails
Noise Level Low (optimized for quiet operation)
Load Capacity Suitable for standard elevator car and counterweight loads
Type Low friction elevator guide shoe
Material Cast iron body with low friction polymer insert
Max. Lifting Weight Depends on elevator specification
Mechanism Type Sliding/Fixed type
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Low friction elevator guide shoe Price And Quantity

Minimum Order Quantity 20 Piece
Price 350.0 INR/Piece

Low friction elevator guide shoe Product Specifications

Type Low friction elevator guide shoe
Safety Device Designed to work with standard elevator safety systems
Mechanism Type Sliding/Fixed type
Working Temperature -10C to 80C
Load Capacity Suitable for standard elevator car and counterweight loads
Noise Level Low (optimized for quiet operation)
Max. Lifting Weight Depends on elevator specification
Material Cast iron body with low friction polymer insert
Usage Elevator guide rails

Replaceable Insert Yes, easy replacement of polymer slide blocks
Color Black/Cast with green polymer liner
Weight Depends on specific model - typically 0.5 kg to 2.5 kg
Polymer Grade High abrasion-resistant engineered plastic
Guide Rail Type Compatible with T-shaped elevator guide rails
Maintenance Requirement Minimal, requires periodic inspection only
Lining Changeability Quick-install insert system for reduced downtime
Dimension (Body) Standard sizes available, custom sizes on request
Friction Coefficient Ultra-low, suitable for smooth and quiet elevator operation
Application Passenger and freight elevators
Corrosion Resistance High, due to polymer composite
Mounting Method Bolt-on (4 mounting holes)

Low friction elevator guide shoe Trade Information

Delivery Time 5-7 Days

Product Description

Hydraulic Guide Shoes are elevator components installed on the top and bottom sections of the elevator car frame to guide the elevator car smoothly along the guide rails during travel. They help maintain proper alignment, reduce vibration, and provide a comfortable ride by minimizing friction and compensating for small irregularities in the guide rail surface.

Hydraulic guide shoes use a hydraulic damping system that allows controlled movement between the guide shoe and the guide rail. This helps absorb shocks and vibrations, especially in high-speed elevators or elevators carrying heavy loads.

Main Functions:

Guides the elevator car Keeps the car properly aligned with the guide rails.
Reduces vibration and noise Provides a smoother and quieter ride.
Compensates for rail imperfections Maintains consistent contact with guide rails despite minor rail unevenness.
Improves passenger comfort Reduces side-to-side movement and sudden impacts.
Handles high-speed operation Suitable for elevators where greater stability is required.

Main Components:

Guide shoe housing Supports the guide shoe assembly.
Hydraulic damper/cylinder Provides cushioning and controlled movement.
Sliding pad or roller contact surface Makes contact with the guide rail.
Spring and adjustment mechanism Maintains proper pressure against the rail.
Lubrication system Reduces wear between contact surfaces.

Advantages:

Smooth and stable elevator movement.
Reduced noise and vibration.
Longer service life of guide rails and elevator components.
Better ride quality compared with conventional sliding guide shoes.
Suitable for high-rise and high-speed elevator applications.

Application:

Hydraulic guide shoes are commonly used in high-speed passenger elevators, heavy-duty elevators, and modern elevator systems where precise guidance and passenger comfort are important. They are installed as part of the elevator car frame and counterweight guidance system.

Ultra-Low Friction Performance

Utilizing advanced engineering, the elevator guide shoe boasts a high abrasion-resistant polymer liner that delivers exceptionally low friction. This ensures quieter operations, reduced wear on elevator components, and a superior ride experience for all elevator users.

Fast, Minimal Maintenance

Designed with a quick-install insert system, the guide shoe allows for speedy replacement of the polymer lining without extensive downtime. Its high durability means inspections are infrequent, and the corrosion-resistant composite extends the product's lifetime.

Customizable and Versatile

Standard body sizes are available for quick selection, and custom dimensions can be produced upon request to ensure perfect fitment. This versatility, combined with reliable load capacity and simple bolt-on installation, meets the needs of distributors, manufacturers, and maintenance teams alike.

FAQ's of Low friction elevator guide shoe:

Q: How do I install the low friction elevator guide shoe?

A: Installation is straightforward using the four pre-drilled mounting holes for bolt-on attachment to T-shaped elevator guide rails. The process typically does not require specialized tools, making it suitable for standard maintenance teams.

Q: What are the main benefits of the ultra-low friction polymer liner?

A: The engineered plastic liner significantly reduces friction, resulting in quieter elevator operation, smooth travel, decreased wear on both the shoe and guide rail, and minimal maintenance demands.

Q: When should the polymer insert be replaced?

A: The insert is highly durable and designed for extended use; however, periodic visual inspections are recommended. Replace the insert if you observe significant wear or upon reaching manufacturer maintenance intervals to ensure optimal performance.

Q: Where can this guide shoe be used?

A: This product is ideal for both passenger and freight elevators using T-shaped guide rails. Its robust design and corrosion resistance make it suitable for various building environments, from residential to industrial.

Q: What is the process for changing the polymer insert?

A: Thanks to the quick-install system, remove the worn insert and replace it with a new one without dismounting the entire shoe. This efficient process minimizes elevator downtime during maintenance.

Q: How does the shoe handle different load capacities?

A: Each guide shoe is engineered to support standard elevator car and counterweight loads. For lifts with unique requirements, custom size and load capacity solutions are available upon request.

Q: What are the usage and safety considerations for this guide shoe?

A: Compatible with standard elevator safety systems, this guide shoe is suitable for both sliding and fixed-type mechanisms. Its cast iron body and engineered liner ensure safe, quiet, and reliable operation.
