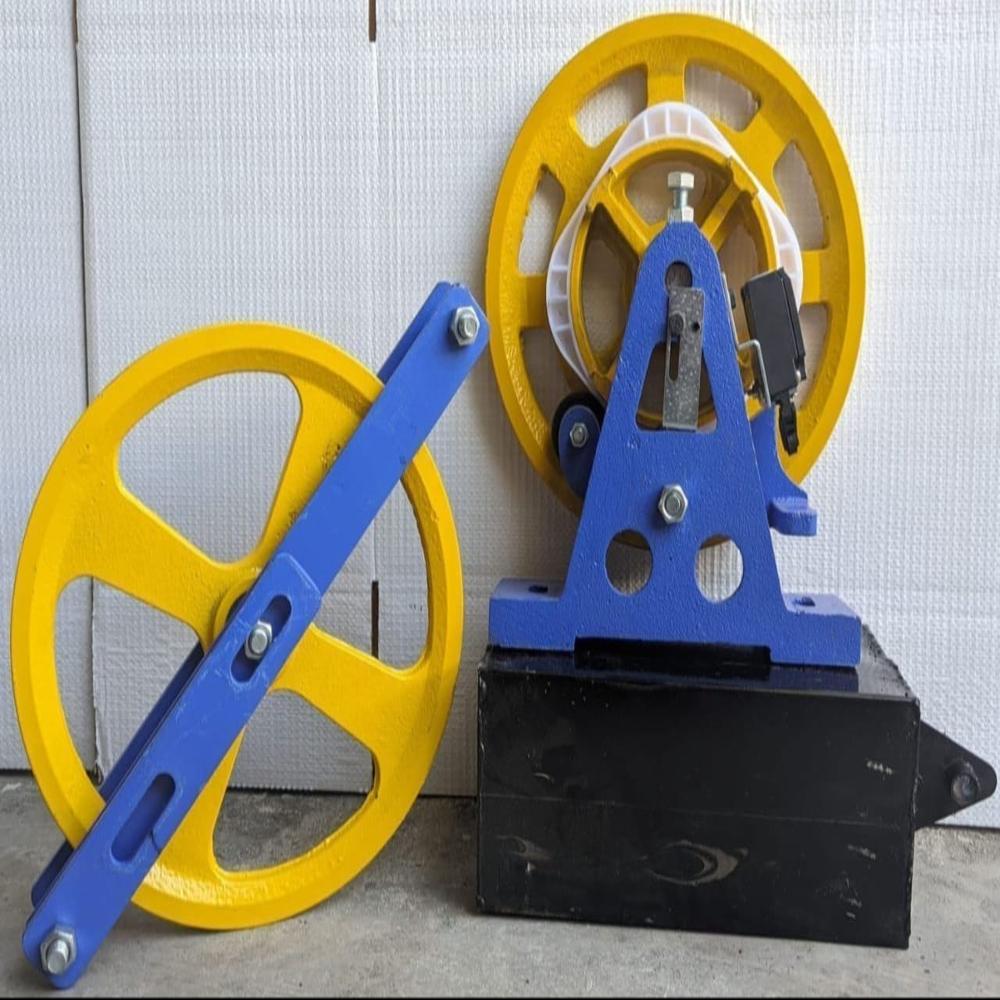

Elevator Governor Manufacturer
6500.0 INR/Piece
Product Details:
- Noise Level 60 dB
- Machine Room Size Varies per installation
- Type Elevator Overspeed Governor
- Usage Elevator speed safety device
- Voltage 220V / 380V (customizable)
- Overhead Height Not critical
- Load Capacity Matches rated elevator capacity
- Click to View more
X
Elevator Governor Manufacturer Price And Quantity
- 5 Piece
- 6500.0 INR/Piece
Elevator Governor Manufacturer Product Specifications
- Varies per installation
- AC power supply
- Elevator speed safety device
- Elevator Overspeed Governor
- 0.25 m/s to 2.5 m/s
- 60 dB
- 220V / 380V (customizable)
- Centrifugal mechanical governor
- Up to 120 m (dependent on model)
- Not critical
- Overspeed trip and cut-off mechanism
- Up to 2000 kg (typical)
- Matches rated elevator capacity
- Mechanical centrifugal governor
- High-grade cast iron, steel, with powder-coated finish
- Electromechanical governor with speed detection switch
- Varies per installation
- Not critical
- -10C to +60C
- 2000 kg
- Not applicable (used for safety mechanism, not car part)
- 0 (vertical application only)
- > 10 years with proper maintenance
- Yellow and blue
- Yellow and blue epoxy powder coating
- Approx. 16-25 kg depending on model
- Passenger and freight elevators
- Simple bolt-on mounting
- Manual reset after actuation
- 200 mm to 300 mm (standard sizes)
- < 0.5 seconds (upon overspeed detection)
- Base mounted with pre-drilled holes
Elevator Governor Manufacturer Trade Information
- 5-7 Days
Product Description
An Elevator Overspeed Governor is a critical safety device installed in elevator systems to prevent the elevator car from moving at an unsafe speed, especially during a free fall or uncontrolled downward movement.
The governor continuously monitors the speed of the elevator car through a governor rope connected to the elevator safety gear. Under normal operation, the governor rotates freely. If the elevator exceeds its preset safe speed (usually due to a failure in the traction system, control system, or suspension components), the governor activates and performs the following actions:
- Detects overspeed condition The governor mechanism senses that the elevator is moving faster than the allowed limit.
- Trips the safety mechanism A centrifugal or electronic sensing system locks the governor.
- Stops the governor rope movement The locked governor pulls the safety gear linkage.
- Activates safety brakes The elevator car safety gear grips the guide rails and slows or stops the car safely.
- Cuts power (in many systems) An electrical switch may disconnect power to the elevator drive system.
Main Components:
- Governor pulley/sheave Rotates with elevator movement.
- Governor rope Connects the governor to the elevator safety gear.
- Flyweights or sensors Detect excessive speed.
- Trip mechanism Locks the governor during overspeed.
- Safety switch Sends a signal to stop elevator operation.
- Safety gear linkage Transfers the action to the car brakes.
Types of Overspeed Governors:
- Mechanical centrifugal governor Uses rotating weights to detect overspeed.
- Electronic overspeed governor Uses sensors and control electronics for monitoring and activation.
High-Efficiency Overspeed Protection
Our elevator governors ensure passenger and cargo safety through rapid, accurate overspeed detection. The centrifugal mechanism instantly trips and disengages elevator operation in under 0.5 seconds if abnormal speed is detected, minimizing risk and enhancing system reliability.
Durable and Simple Installation
Built with high-grade materials and a robust powder-coated finish, these governors withstand challenging environments and heavy usage. The base-mounted configuration with pre-drilled holes simplifies installation, saving time and ensuring secure attachment for both new and retrofit projects.
Adaptable for Diverse Elevator Systems
Supporting a wide range of elevator speeds and capacities, our governors are suitable for various passenger and freight elevators. Customizable voltage options meet specific site power requirements, and operation is ensured across a wide temperature range for consistent performance.
FAQ's of Elevator Governor Manufacturer:
Q: How does the elevator overspeed governor detect and respond to excessive elevator speed?
A: The governor uses a mechanical centrifugal mechanism that continuously monitors the elevator's speed. If the speed surpasses the preset threshold, the governor trips within 0.5 seconds, activating the safety mechanism to stop or slow down the elevator immediately.Q: What is involved in installing this elevator governor?
A: Installation is straightforward due to the base-mounted design with pre-drilled holes. The governor can be bolted onto the elevator framework with minimal modifications, making it suitable for both new installations and upgrades.Q: What kind of elevators are compatible with this governor model?
A: This product is suitable for both passenger and freight elevators, supporting speeds from 0.25 m/s to 2.5 m/s and lifting capacities up to 2000 kg. It can be used in a variety of buildings with a maximum shaft height of 120 meters.Q: What maintenance is required to achieve a service life of over 10 years?
A: Regular inspections, proper cleaning, lubrication of moving parts, and periodic functional tests are recommended. Following the manufacturer's maintenance schedule ensures optimal performance and longevity of the governor.Q: Where is this overspeed governor typically installed within an elevator system?
A: The governor is installed in the elevator machinery area or hoistway, positioned so it can effectively monitor the moving cables and trigger the safety mechanism as required. Precise location depends on specific elevator design and regulations.Q: What are the benefits of the yellow and blue epoxy powder coating?
A: The epoxy powder coating provides robust corrosion and wear resistance, ensuring that the governor maintains its structural integrity and visibility in the machinery area, which aids in inspection and maintenance activities.Tell us about your requirement
