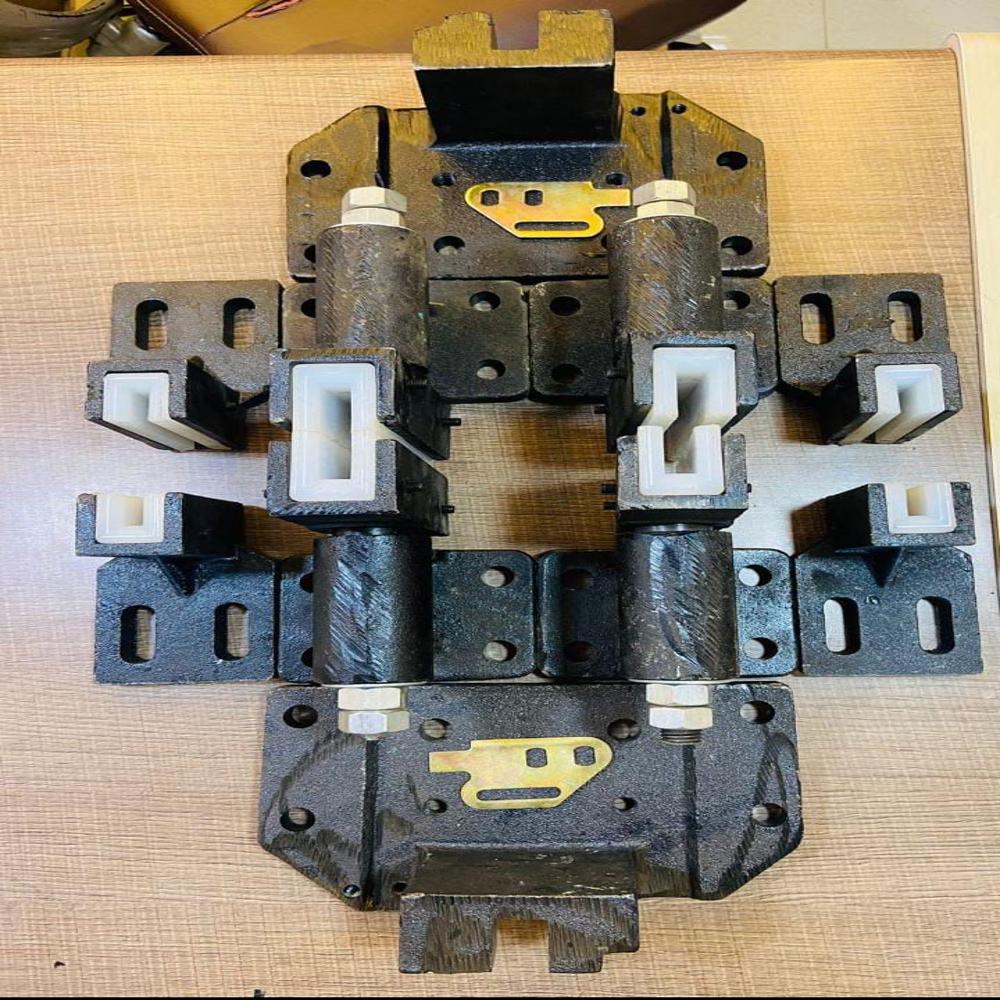

Guidshoe set for elevator
9000.0 INR/Piece
Product Details:
- Type Guide Shoe Set
- Usage Elevator Guide Rail
- Material Cast Iron with Polymer Liners
- Mechanism Type Sliding Guide
- Working Temperature -20C to +60C
- Safety Device Integrated buffer system
- Click to View more
X
Guidshoe set for elevator Price And Quantity
- 20 Piece
- 9000.0 INR/Piece
Guidshoe set for elevator Product Specifications
- Guide Shoe Set
- Integrated buffer system
- Cast Iron with Polymer Liners
- Elevator Guide Rail
- -20C to +60C
- Sliding Guide
- Approx. 5-8 kg per unit
- Corrosion-resistant coating
- High-Density Polymer
- 1 Complete Set
- Stabilizes and guides elevator car movement
- Bolt-on assembly with adjustable fit
- Low-maintenance, replaceable inserts
- Universal fitting for elevator guide rails
- Standard T-shaped or solid guide rails
- Black
Product Description
Elevator Guide Shoe Set Description
A Guide Shoe Set is an important elevator component installed on the top and bottom of the elevator car frame and counterweight frame. Its main purpose is to guide the elevator car and counterweight smoothly along the guide rails while maintaining proper alignment during upward and downward movement.
The guide shoe set helps reduce vibration, noise, and sideways movement, ensuring a safe and comfortable elevator ride.
Main Functions:
-
Guides elevator movement Keeps the elevator car and counterweight aligned with the guide rails.
-
Reduces vibration and noise Provides smooth and stable travel.
-
Maintains proper clearance Ensures consistent contact between the guide shoe and guide rail.
-
Improves ride comfort Minimizes shaking and uneven movement.
-
Supports safe operation Helps maintain elevator stability during travel and emergency conditions.
Main Components:
-
Guide shoe bracket Supports and holds the guide shoe assembly.
-
Sliding shoe pad or roller Makes contact with the guide rail surface.
-
Spring or adjustment mechanism Maintains proper pressure against the rail.
-
Damping arrangement (for hydraulic guide shoes) Absorbs shocks and vibrations.
-
Mounting hardware Connects the guide shoe assembly to the elevator frame.
Types of Guide Shoe Sets:
-
Sliding Guide Shoe Set Uses wear-resistant pads that slide along the guide rails.
-
Roller Guide Shoe Set Uses rollers for smoother operation, commonly used in high-speed elevators.
-
Hydraulic Guide Shoe Set Uses damping systems for improved ride comfort.
Advantages:
-
Provides smooth and stable elevator travel.
-
Reduces wear on guide rails and elevator components.
-
Improves passenger comfort.
-
Helps maintain accurate elevator alignment.
-
Suitable for passenger, freight, and high-speed elevators.
Purpose:
The primary purpose of a guide shoe set is to keep the elevator car and counterweight correctly aligned with the guide rails, ensuring safe, smooth, and reliable elevator operation.
Engineered for Reliability and Safety
Built with a corrosion-resistant finish and a robust cast iron structure, the Guidshoe Set provides enduring performance even in demanding conditions. The integrated buffer system enhances passenger safety, while the high-density polymer inserts ensure smooth, stable movement.
Versatile Compatibility and Easy Installation
Universal fittings make this guide shoe set suitable for most standard T-shaped and solid elevator guide rails. The bolt-on assembly and adjustable design allow for quick retrofitting or new installations, saving you valuable time during elevator maintenance or upgrades.
FAQ's of Guidshoe set for elevator:
Q: How does the Guidshoe Set improve elevator car stability?
A: The Guidshoe Set uses high-density polymer liners and a cast iron body to minimize vibrations and lateral movement, ensuring smooth and stable elevator car travel along the guide rails.Q: What is involved in the installation process of the Guidshoe Set?
A: Installation is straightforward, thanks to its bolt-on assembly and universal fittings. It can be adjusted to fit both T-shaped or solid guide rails, making it suitable for retrofits and new installations alike.Q: When should I consider replacing the insert in the Guidshoe Set?
A: Replace the high-density polymer insert if you observe increased noise, vibration, or visible wear during routine elevator maintenance, as this component is designed for easy replacement to maintain optimal performance.Q: Where can the Guidshoe Set be used?
A: This set is compatible with a wide range of architectural environments, suitable for any standard elevator system utilizing T-shaped or solid guide rails with working temperatures between -20C and +60C.Q: What benefit does the corrosion-resistant coating provide?
A: The special coating protects the guide shoe set from rust and wear, significantly extending the lifespan and reliability of the elevator system, especially in humid or challenging environments.Q: How does the integrated buffer system enhance elevator safety?
A: The buffer system acts as a safety device by absorbing shocks and reducing the impact during operations, ensuring passenger and equipment protection during adverse conditions.Tell us about your requirement
