Elevator Braking System

Name: Elevator Braking System
Brand: M. B. ENGINEERING
Price: 6500.0 INR
Availability: InStock

6500.0 INR/Piece

Get a Price/Quote

Product Details:

Noise Level 60 dB
Type Mechanical and Electromagnetic Braking
Voltage 220-240V / 380-415V AC
Load Capacity 1000 kg to 2000 kg
Inclination 0 (for vertical installation)
Usage Elevator Safety, Emergency Braking
Material Cast Iron, Steel
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Elevator Braking System Price And Quantity

Price 6500.0 INR/Piece
Minimum Order Quantity 5 Piece

Elevator Braking System Product Specifications

Power Supply Single/Three Phase
Control Device Microprocessor/Relay Based
Capacity Standard up to 1-2 tons
Material Cast Iron, Steel
Usage Elevator Safety, Emergency Braking
Drive Type Electromechanical
Speed 0.63 - 2.5 m/s
Max. Lifting Weight 2000 kg
Inclination 0 (for vertical installation)
Safety Device Electromagnetic Release / Manual Release
Load Capacity 1000 kg to 2000 kg
Working Temperature -10C to +60C
Voltage 220-240V / 380-415V AC
Noise Level 60 dB
Type Mechanical and Electromagnetic Braking
Mechanism Type Spring Applied, Electromagnetically Released

Customization Available as per design
Mounting Type Base Mounted
Response Time 0.2 seconds
Application Traction and Gearless Elevators
Service Life More than 1 Million Cycles
Color Blue-Yellow
Surface Finish Powder Coated / Painted
Brake Wheel Diameter 200 mm - 300 mm
Insulation Class Class F

Elevator Braking System Trade Information

Delivery Time 5-7 Days

Product Description

An Elevator Overspeed Governor is a critical safety device installed in elevator systems to prevent the elevator car from moving at an unsafe speed, especially during a free fall or uncontrolled downward movement.

The governor continuously monitors the speed of the elevator car through a governor rope connected to the elevator safety gear. Under normal operation, the governor rotates freely. If the elevator exceeds its preset safe speed (usually due to a failure in the traction system, control system, or suspension components), the governor activates and performs the following actions:

Detects overspeed condition The governor mechanism senses that the elevator is moving faster than the allowed limit.
Trips the safety mechanism A centrifugal or electronic sensing system locks the governor.
Stops the governor rope movement The locked governor pulls the safety gear linkage.
Activates safety brakes The elevator car safety gear grips the guide rails and slows or stops the car safely.
Cuts power (in many systems) An electrical switch may disconnect power to the elevator drive system.

Main Components:

Governor pulley/sheave Rotates with elevator movement.
Governor rope Connects the governor to the elevator safety gear.
Flyweights or sensors Detect excessive speed.
Trip mechanism Locks the governor during overspeed.
Safety switch Sends a signal to stop elevator operation.
Safety gear linkage Transfers the action to the car brakes.

Types of Overspeed Governors:

Mechanical centrifugal governor Uses rotating weights to detect overspeed.
Electronic overspeed governor Uses sensors and control electronics for monitoring and activation.

Fast and Dependable Braking

Experience peace of mind with a braking system that reacts in just 0.2 seconds and is engineered to last beyond one million operational cycles. The surface is finished with powder coating or paint, ensuring protection against wear and corrosion even in demanding environments.

Versatile and Customizable Applications

Our system supports both traction and gearless elevators, with load capacities ranging from 1000 kg to 2000 kg. Whether required for residential, commercial, or industrial elevators, customization options are available to suit unique design needs and installation conditions.

Advanced Safety Features

Safety is prioritized through electromagnetic or manual release mechanisms, a microprocessor or relay-based control device, and spring-applied, electromagnetically released braking. The system operates quietly, ensuring a comfortable experience for users while delivering reliable emergency response.

FAQ's of Elevator Braking System:

Q: How does the elevator braking system enhance elevator safety?

A: The system utilizes a mechanical and electromagnetic braking mechanism, featuring a spring-applied, electromagnetically released design. This ensures rapid, reliable response during power loss or emergencies, minimizing risks and securing passenger safety.

Q: What environments and elevator types is the braking system suitable for?

A: The brake is ideal for both traction and gearless elevators, compatible with installations in residential, commercial, and industrial buildings. Its robust materials and surface finishing ensure long-term durability in diverse conditions.

Q: When should I consider customizing the braking system?

A: Customization is recommended when your project requires specific dimensions, mounting, or operational characteristics beyond our standard range. We work with distributors, manufacturers, suppliers, or traders to deliver tailored solutions for unique elevator designs.

Q: Where is the braking system installed within the elevator setup?

A: This braking system is base mounted, typically at the machine room or elevator top, depending on the elevator design. Proper mounting ensures optimal performance and straightforward maintenance.

Q: What is the typical service life and maintenance interval of the brake?

A: With a service life of over one million cycles, routine inspection and basic maintenance are generally recommended as per elevator operational standards. The powder-coated or painted finish aids in extending service intervals by reducing surface degradation.

Q: How does the control device interface with the braking mechanism?

A: The system can be managed via a microprocessor or relay-based controller, providing precise command over the braking sequence and integration into the elevator's safety system for prompt response in emergencies.

Q: What are the benefits of the noise control feature in this braking system?

A: Operating at a maximum of 60 dB, the braking system contributes to a quieter elevator experience. This is particularly vital in residential and office settings, promoting occupant comfort and satisfaction.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Elevator Assembly Spare Parts' category

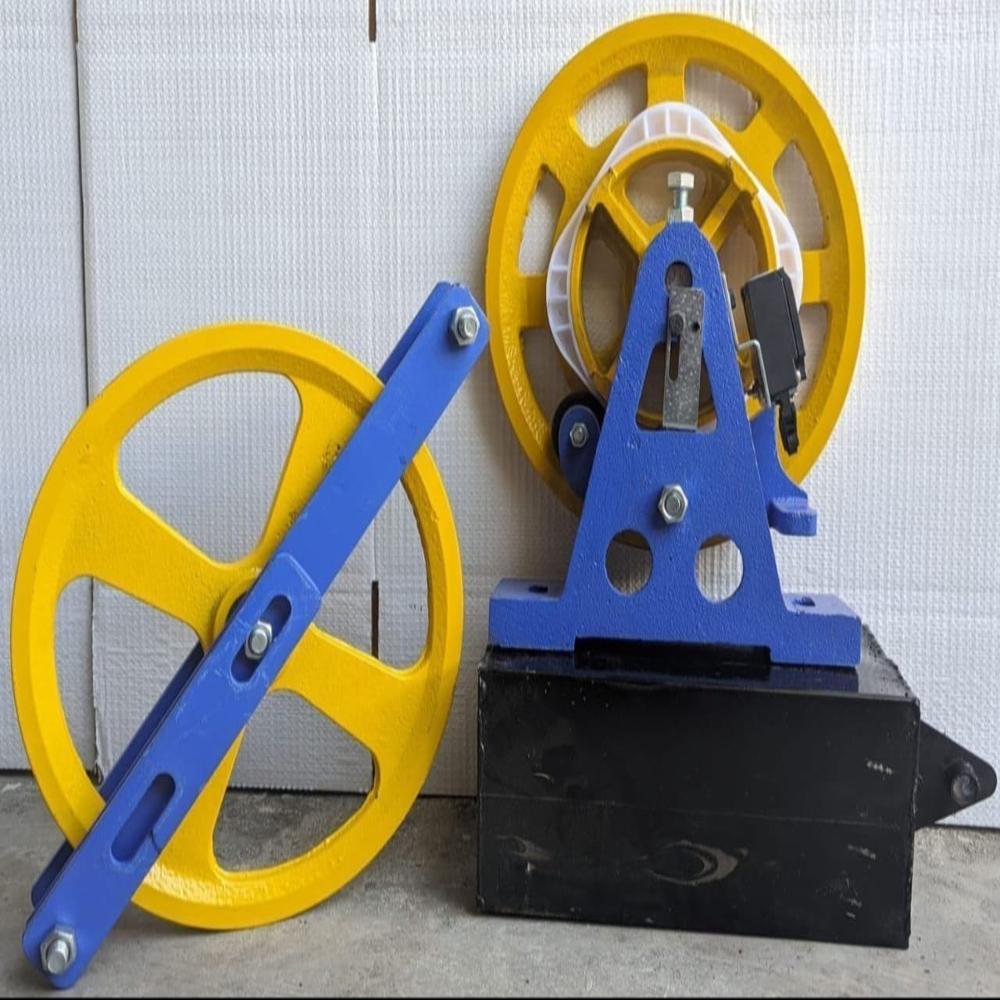

Mechanical Overspeed Governor Price : 6500.0 INR/Piece Minimum Order Quantity : 5 Material : other Sheet, Cast Iron/Steel Noise Level : < 65 dB Usage : Other, Elevator/Escalator Safety Mechanism Working Temperature : 10C to 60C Max. Lifting Weight : Up to 2000 kg Mechanism Type : Other, Centrifugal/Mechanical Governor Type : Other, Overspeed Governor Load Capacity : Up to 2000 kg Safety Device : Other, Integrated Safety Jaw Actuation Speed : Up to 2.5 m/s Capacity : Up to 2000 kg Voltage : Not Applicable (Mechanical Device)

Send Inquiry

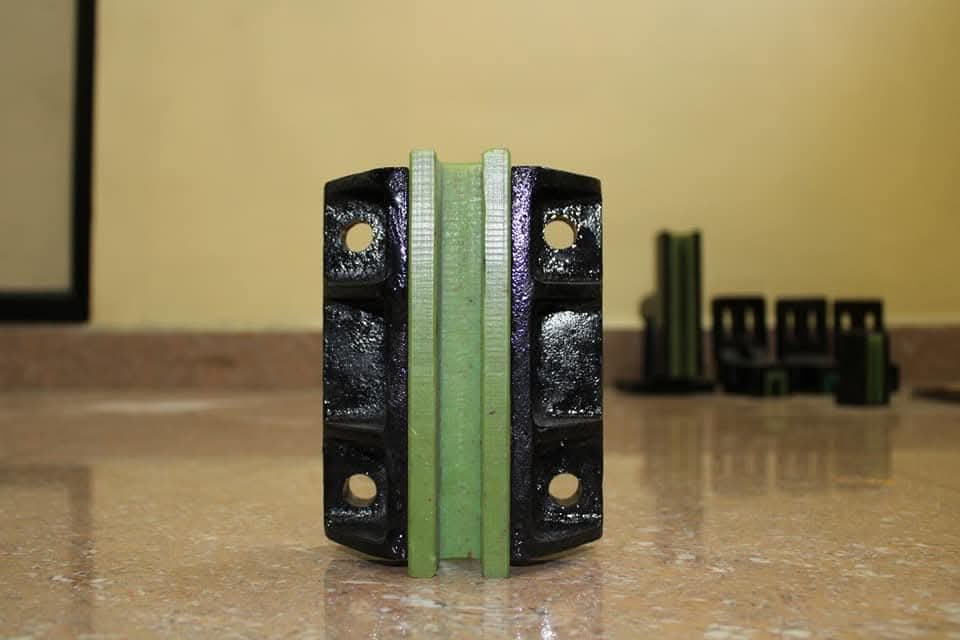

Hydraulic elevator guide shoe Price : 350.0 INR/Piece Minimum Order Quantity : 20 Material : other Sheet, Cast iron body with polymer/nylon insert Noise Level : Low (designed for smooth guidance and minimal noise) Usage : Other, Guiding elevator car along rails Working Temperature : 20C to 80C (typical for elevator hardware) Max. Lifting Weight : Depends on elevator rated load Mechanism Type : Other, Sliding or roller type (with replaceable insert) Type : Other, Hydraulic Elevator Guide Shoe Load Capacity : Supports up to 2,000 kg (varies by guide shoe model) Safety Device : Other, Integrated for smooth guidance and stability Capacity : N/A (Componentspecific, depends on elevator design) Voltage : N/A (Mechanical component, not powered)
