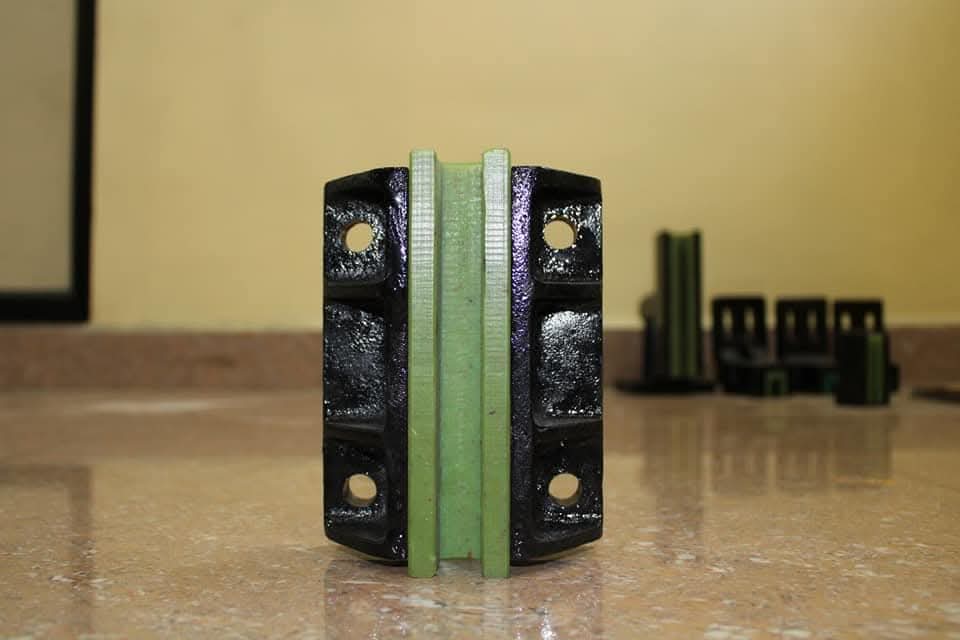

hydraulic guide shoes

Name: hydraulic guide shoes
Brand: M. B. ENGINEERING
Price: 350.0 INR
Availability: InStock

350.0 INR/Unit

Get a Price/Quote

Product Details:

Type Hydraulic Guide Shoe
Noise Level Low
Inclination 0 (Standard)
Load Capacity Up to 3 Tons
Usage Elevator, Lift Systems, Goods Lift, Passenger Lift
Material Cast Iron Body with Polymeric Insert
Drive Type Hydraulic
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

hydraulic guide shoes Price And Quantity

Price 350.0 INR/Unit
Minimum Order Quantity 20 Unit

hydraulic guide shoes Product Specifications

Type Hydraulic Guide Shoe
Usage Elevator, Lift Systems, Goods Lift, Passenger Lift
Load Capacity Up to 3 Tons
Mechanism Type Mechanical, Slipper Type
Inclination 0 (Standard)
Safety Device Guide Shoe Insert Provides Smooth Ride, Reduces Vibration
Drive Type Hydraulic
Working Temperature -10C to 65C
Noise Level Low
Material Cast Iron Body with Polymeric Insert

Application Elevator and Lift Safety/Guiding Component
Surface Treatment Black Painted Finish
Insert Material High-Durability Polymer (Green)
Compatibility Suitable for T-type or Solid Guide Rails
Color Black and Green (Standard)
Mounting Holes Four-Bolt Mount Design
Replaceable Insert Yes
Dimension Customizable as per lift requirement
Corrosion Resistance Yes

Product Description

Hydraulic Guide Shoes are elevator components installed on the top and bottom sections of the elevator car frame to guide the elevator car smoothly along the guide rails during travel. They help maintain proper alignment, reduce vibration, and provide a comfortable ride by minimizing friction and compensating for small irregularities in the guide rail surface.

Hydraulic guide shoes use a hydraulic damping system that allows controlled movement between the guide shoe and the guide rail. This helps absorb shocks and vibrations, especially in high-speed elevators or elevators carrying heavy loads.

Main Functions:

Guides the elevator car Keeps the car properly aligned with the guide rails.
Reduces vibration and noise Provides a smoother and quieter ride.
Compensates for rail imperfections Maintains consistent contact with guide rails despite minor rail unevenness.
Improves passenger comfort Reduces side-to-side movement and sudden impacts.
Handles high-speed operation Suitable for elevators where greater stability is required.

Main Components:

Guide shoe housing Supports the guide shoe assembly.
Hydraulic damper/cylinder Provides cushioning and controlled movement.
Sliding pad or roller contact surface Makes contact with the guide rail.
Spring and adjustment mechanism Maintains proper pressure against the rail.
Lubrication system Reduces wear between contact surfaces.

Advantages:

Smooth and stable elevator movement.
Reduced noise and vibration.
Longer service life of guide rails and elevator components.
Better ride quality compared with conventional sliding guide shoes.
Suitable for high-rise and high-speed elevator applications.

Application:

Hydraulic guide shoes are commonly used in high-speed passenger elevators, heavy-duty elevators, and modern elevator systems where precise guidance and passenger comfort are important. They are installed as part of the elevator car frame and counterweight guidance system.

Optimized for Safety and Efficiency

Created as an essential guiding component for elevators and lifts, this hydraulic guide shoe prioritizes safe, reliable movement. The polymer insert reduces vibration, contributing to a smoother, quieter ride for passengers and cargo alike.

Durable Construction, Custom Fit

Constructed from cast iron with a black painted finish for superior corrosion protection, this guide shoe combines strength and resilience. Its replaceable insert and tailor-made dimensions mean it is adaptable to specific lift requirements, ensuring peak performance in diverse installations.

Easy Installation and Long-Term Value

Featuring a four-bolt mount design, the guide shoe enables straightforward installation or replacement. Corrosion resistance and a replaceable polymer insert translate to minimized maintenance and extended operational life, providing tangible long-term cost savings for building operators.

FAQ's of hydraulic guide shoes:

Q: How is the hydraulic guide shoe installed in an elevator system?

A: The guide shoe uses a four-bolt mount design, allowing for secure and easy installation onto T-type or solid guide rails used in elevator and lift systems.

Q: What benefits does the high-durability polymer insert provide?

A: The green polymer insert delivers a smooth, low-vibration ride, enhances passenger comfort, reduces operational noise, and can be replaced when worn, extending the guide shoe's service life.

Q: Where can this hydraulic guide shoe be used?

A: It is suitable for a wide range of vertical transport applications, including goods lifts, passenger elevators, and freight lifts in commercial, residential, or industrial buildings.

Q: When should the replaceable insert be changed?

A: The polymer insert should be replaced during routine maintenance inspections or when signs of significant wear, noise, or reduced ride smoothness are observed, ensuring sustained optimal performance.

Q: What process ensures the guide shoe's resistance to corrosion?

A: A black painted finish is applied to the cast iron body, providing a protective layer that increases resistance to rust and extends the durability of the shoe in various environmental conditions.

Q: How are the dimensions of the guide shoe determined?

A: Dimensions can be customized according to the specific requirements of the lift or elevator system, guaranteeing proper fit and optimal function for individual projects.
