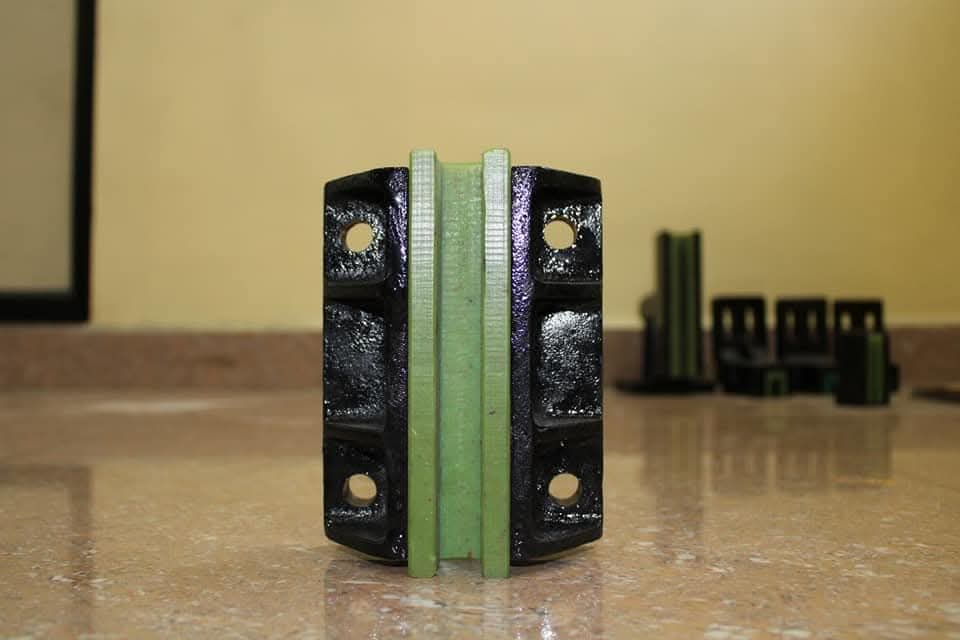

Hydraulic Guide Shoes are elevator components installed on the top and bottom sections of the elevator car frame to guide the elevator car smoothly along the guide rails during travel. They help maintain proper alignment, reduce vibration, and provide a comfortable ride by minimizing friction and compensating for small irregularities in the guide rail surface.

Hydraulic guide shoes use a hydraulic damping system that allows controlled movement between the guide shoe and the guide rail. This helps absorb shocks and vibrations, especially in high-speed elevators or elevators carrying heavy loads.

Main Functions:

Guides the elevator car Keeps the car properly aligned with the guide rails.
Reduces vibration and noise Provides a smoother and quieter ride.
Compensates for rail imperfections Maintains consistent contact with guide rails despite minor rail unevenness.
Improves passenger comfort Reduces side-to-side movement and sudden impacts.
Handles high-speed operation Suitable for elevators where greater stability is required.

Main Components:

Guide shoe housing Supports the guide shoe assembly.
Hydraulic damper/cylinder Provides cushioning and controlled movement.
Sliding pad or roller contact surface Makes contact with the guide rail.
Spring and adjustment mechanism Maintains proper pressure against the rail.
Lubrication system Reduces wear between contact surfaces.

Advantages:

Smooth and stable elevator movement.
Reduced noise and vibration.
Longer service life of guide rails and elevator components.
Better ride quality compared with conventional sliding guide shoes.
Suitable for high-rise and high-speed elevator applications.

Application:

Hydraulic guide shoes are commonly used in high-speed passenger elevators, heavy-duty elevators, and modern elevator systems where precise guidance and passenger comfort are important. They are installed as part of the elevator car frame and counterweight guidance system.
