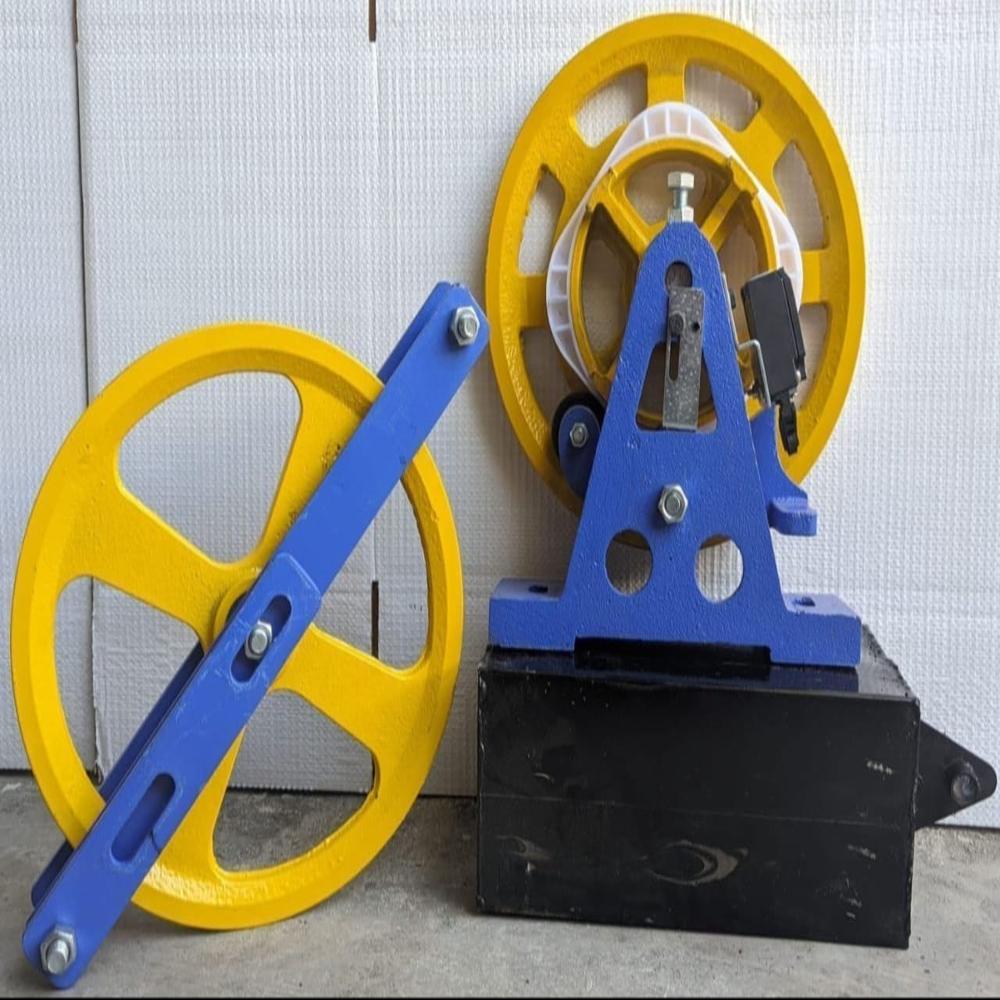

Elevator Governor Supplier
6500.0 INR/Unit
Product Details:
- Machine Room Size Compact, Mountable
- Type Elevator Overspeed Governor
- Voltage AC 220V / 380V (Standard)
- Pit Depth As per lift design
- Overhead Height As per lift design
- Load Capacity Customizable
- Hoist Way Size Compatible with Standard Hoistway
- Click to View more
X
Elevator Governor Supplier Price And Quantity
- 6500.0 INR/Unit
- 5 Unit
Elevator Governor Supplier Product Specifications
- Elevator Overspeed Governor
- -10C to +60C
- Mechanical centrifugal governor
- As per lift design
- AC 220V / 380V (Standard)
- Up to 2.5 m/s
- As per applicable standards / requirement
- Compact, Mountable
- Electric
- Upto 2000 kg
- Compatible with Standard Hoistway
- Traction Elevators
- 65 dB
- N/A (Governor unit specification)
- Overspeed Governor with Tripping Function
- Elevator Safety Mechanism
- Adaptable (vertical mounting preferred)
- N/A (Governor unit specification)
- As per lift design
- High-grade Cast Iron, Steel
- Customizable
- As per elevator design
- Mechanical-Electrical (Cam & Switch Interface)
- Micro-switch for safety cut-off
- Powder Coated for Corrosion Resistance
- Yellow & Blue Standard Finish
- Base Plate Mounted
- Adjustable with model
- Precision Cast & CNC Machined
- Over 10 years under normal operation
- 200-300 mm (standard options)
- Passenger, Goods, and Hospital Elevators
- Manual/Automatic (as per model)
- Periodic visual inspection and lubrication recommended
- Bi-directional or Uni-directional
Product Description
An Elevator Overspeed Governor is a critical safety device installed in elevator systems to prevent the elevator car from moving at an unsafe speed, especially during a free fall or uncontrolled downward movement.
The governor continuously monitors the speed of the elevator car through a governor rope connected to the elevator safety gear. Under normal operation, the governor rotates freely. If the elevator exceeds its preset safe speed (usually due to a failure in the traction system, control system, or suspension components), the governor activates and performs the following actions:
- Detects overspeed condition The governor mechanism senses that the elevator is moving faster than the allowed limit.
- Trips the safety mechanism A centrifugal or electronic sensing system locks the governor.
- Stops the governor rope movement The locked governor pulls the safety gear linkage.
- Activates safety brakes The elevator car safety gear grips the guide rails and slows or stops the car safely.
- Cuts power (in many systems) An electrical switch may disconnect power to the elevator drive system.
Main Components:
- Governor pulley/sheave Rotates with elevator movement.
- Governor rope Connects the governor to the elevator safety gear.
- Flyweights or sensors Detect excessive speed.
- Trip mechanism Locks the governor during overspeed.
- Safety switch Sends a signal to stop elevator operation.
- Safety gear linkage Transfers the action to the car brakes.
Types of Overspeed Governors:
- Mechanical centrifugal governor Uses rotating weights to detect overspeed.
- Electronic overspeed governor Uses sensors and control electronics for monitoring and activation.
Unmatched Safety and Durability
Our elevator governor is designed with a mechanical centrifugal mechanism and an integrated micro-switch for immediate tripping during overspeed events. The powder-coated exterior provides lasting corrosion resistance, while the robust base plate mounting assures secure installation in a range of environments. Supported by over a decade of service life when maintained regularly, it brings peace of mind to facility operators and elevator users alike.
Tailored for Versatile Applications
This governor is compatible with a wide spectrum of elevator types-including passenger, goods, and hospital elevators. Available with bi-directional or uni-directional operation, models can be fitted with manual or automatic reset mechanisms to suit varied building needs. The customizable load capacity and compact machine room requirements make it an adaptable solution for both new construction and modernization projects.
FAQ's of Elevator Governor Supplier:
Q: How does the elevator overspeed governor enhance elevator safety?
A: The governor instantly detects and responds to elevator overspeed conditions using a centrifugal mechanism, triggering the micro-switch safety cut-off. This immediately activates braking systems, preventing accidents and ensuring passenger safety.Q: What is the recommended process for maintaining the elevator governor?
A: Periodic visual inspections and lubrication are recommended to maintain optimal performance. Scheduled maintenance ensures the device operates efficiently, prolongs service life, and upholds safety standards.Q: When should the governor's clamping force be adjusted?
A: Clamping force should be set during installation or whenever operational parameters change-such as load capacity modifications or after major servicing-to ensure reliable tripping and safety performance.Q: Where can this governor be installed?
A: The governor's base plate mounting and compact dimensions allow installation in standard elevator hoistways and machine rooms. Its adaptable design fits both new and retrofit projects, within a working temperature of -10C to +60C.Q: What are the benefits of the powder-coated finish and high-quality materials?
A: The powder-coated finish and use of high-grade cast iron and steel provide superior corrosion resistance and structural integrity, extending the governor's service life beyond ten years in standard operational environments.Q: How is the governor reset after activation?
A: Based on the model selected, the governor can be reset manually or automatically. This flexibility enables building operators to choose the mechanism best suited for their maintenance protocols and elevator usage patterns.Q: What distinguishes your governor from other options on the market?
A: Our governor is precision cast and CNC-machined for high reliability, features customizable load capacity, and offers both uni-directional and bi-directional operation. Its compliance with elevator standards and versatile design make it suitable for a variety of elevator types and configurations.Tell us about your requirement
