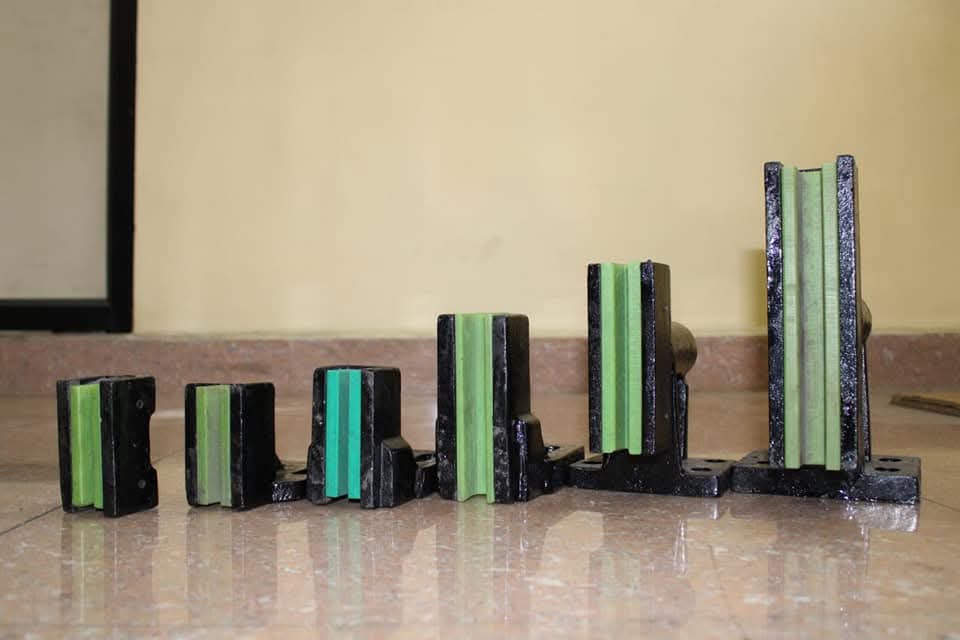

Guidshoe for elevator
1200.0 INR/Piece
Product Details:
- Car Dimension Compatible with standard elevator car sizes (custom available)
- Type Elevator Guide Shoe (Fixed or Sliding as per specification)
- Noise Level Low Noise Operation (Polymer Insert Reduces Friction)
- Hoist Way Size As per elevator hoistway specification (customized)
- Voltage Not Applicable (Mechanical Component)
- Load Capacity Dependent on elevator load design (customized)
- Inclination 0, Designed for Vertical Movement
- Click to View more
X
Guidshoe for elevator Price And Quantity
- 1200.0 INR/Piece
- 20 Piece
Guidshoe for elevator Product Specifications
- High strength cast iron body with polymer (UHMWPE/PU) inserts
- Low Noise Operation (Polymer Insert Reduces Friction)
- As per elevator hoistway specification (customized)
- Varies by size (commonly up to 4000kg or customizable)
- Elevator Guide Shoe (Fixed or Sliding as per specification)
- Suitable for various elevator capacities (customizable)
- Compatible with standard elevator car sizes (custom available)
- Sliding or Fixed (with replaceable liners/inserts)
- Guiding elevator car and counterweight along guide rails
- 0, Designed for Vertical Movement
- -10C to +70C
- Compatible with elevator speeds up to 2.5 m/s (higher on request)
- As per elevator shaft height requirements
- Supports elevator safety systems by ensuring aligned movement
- Not Applicable (Guidshoe is a mechanical guide part)
- Dependent on elevator load design (customized)
- Not Applicable (Mechanical Component)
- 55-65 Shore D (Polymer)
- Designed for T Guide Rails (T-45, T-70, T-82, T-89, T-125, etc.)
- Up to 5 years depending on load and usage
- Multiple holes for bolted installation
- Passenger Elevator, Freight Elevator, Hospital Lift, Dumbwaiter, etc.
- Individually wrapped or packed in cardboard cartons
- Available in multiple sizes to suit rail size 8mm, 10mm, 16mm, and more
- Conforms to ISO/EN 81-20 Elevator Standards
- Black painted/corrosion-resistant surface
- Polymer/PU inserts are replaceable
- Low maintenance, easily inspectable and serviceable
- Standard green insert (other colors on request)
- Special sizes and inserts on request
Product Description
Elevator Guide Shoe Description
A Guide Shoe is a safety and guidance component installed on the top and bottom of the elevator car frame and counterweight frame. It keeps the elevator car and counterweight properly aligned while moving along the guide rails inside the elevator shaft.
The guide shoe maintains smooth vertical travel, reduces vibration and noise, and helps provide a comfortable and stable elevator ride.
Main Functions:
-
Guides elevator movement Keeps the elevator car and counterweight aligned with the guide rails.
-
Maintains stability Prevents excessive side-to-side movement during operation.
-
Reduces vibration and noise Provides smoother and quieter elevator travel.
-
Improves ride comfort Helps maintain a steady and balanced movement.
-
Protects elevator components Reduces wear on guide rails and the elevator frame.
Main Components:
-
Guide shoe body/bracket Supports the complete guide shoe assembly.
-
Sliding pad or roller Contacts the guide rail and guides movement.
-
Spring mechanism Maintains proper contact pressure with the rail.
-
Adjustment system Allows alignment and clearance adjustment.
-
Lubrication arrangement (if provided) Reduces friction and wear.
Types of Elevator Guide Shoes:
-
Sliding Guide Shoe Uses a low-friction wear pad that slides along the guide rail.
-
Roller Guide Shoe Uses rollers for smoother operation, commonly used in high-speed elevators.
-
Hydraulic Guide Shoe Uses damping technology to reduce vibration and improve ride quality.
Advantages:
-
Provides smooth and accurate elevator movement.
-
Reduces noise and mechanical vibration.
-
Improves passenger comfort.
-
Increases the service life of guide rails and elevator components.
-
Enhances elevator safety and reliability.
Purpose:
The main purpose of an elevator guide shoe is to guide the elevator car and counterweight safely along the guide rails while ensuring smooth, stable, and comfortable elevator operation.
Engineered Versatility for Every Elevator System
Guidshoe accommodates a variety of elevator types-passenger, freight, hospital, and dumbwaiter-thanks to its compatibility with major T-guide rail profiles (T-45, T-70, T-82, and more). Its customizable sizing, replaceable inserts, and adaptability to different car dimensions and hoist ways ensure suitability for new installations and retrofits alike.
Durability and Safety Prioritized
Built with a high-strength cast iron body and premium polymer or PU inserts, this guiding shoe withstands heavy loads and frequent use, boasting a lifespan of up to five years. The corrosion-resistant finish and strict adherence to ISO/EN 81-20 standards offer peace of mind and extend service intervals.
Convenient Maintenance and Customization
With replaceable liners and accessible mounting, the Guidshoe minimizes downtime and simplifies upkeep. Installers can choose from standard or special insert colors and sizes to match specific elevator requirements. Its low-friction design ensures quiet movement and optimal alignment for smooth, safe elevator operation.
FAQ's of Guidshoe for elevator:
Q: How do I select the appropriate Guidshoe size for my elevator project?
A: You should choose the Guidshoe size that matches your elevator's T-guide rail type-available sizes include compatibility with rails of 8mm, 10mm, 16mm, T-45, T-70, T-82, T-89, T-125, and more. Custom sizing is available for non-standard installations; consult your rail specifications for the best fit.Q: What types of elevators can this Guidshoe be used with?
A: This Guidshoe is designed for a range of applications, including passenger elevators, freight elevators, hospital lifts, and dumbwaiters. Its versatility allows use in both new and retrofit projects, offering reliable alignment and support for elevator cars and counterweights.Q: What is the procedure for replacing worn inserts on the Guidshoe?
A: When inserts become worn, simply unbolt the Guidshoe, remove the existing polymer/PU liner, and install a new one-no special tools required. Periodic inspection will ensure consistent performance and prolong the component's service life.Q: How does the Guidshoe contribute to elevator safety and noise reduction?
A: The Guidshoe is crucial for keeping elevator cars properly aligned along guide rails, minimizing lateral movement and supporting safety systems. Its polymer inserts reduce operational noise and friction, ensuring a smoother, safer ride for passengers and cargo.Q: Where should the Guidshoe be installed on an elevator?
A: Install the Guidshoe directly on the elevator car and counterweight to guide them along the T-guide rails throughout the shaft. Multiple mounting holes facilitate bolted installation to suit various elevator designs.Q: What are the maintenance requirements for the Guidshoe?
A: Guidshoe is engineered for low maintenance. Regularly inspect the inserts for wear, clean the assembly if needed, and replace liners as necessary. Thanks to durable materials and a corrosion-resistant base, service is straightforward and infrequent.Q: Can the Guidshoe be customized for unique project requirements?
A: Absolutely. Custom sizes, insert materials, and colors are available by request to ensure compatibility with your specific elevator type, load capacity, or aesthetic preferences.Tell us about your requirement
